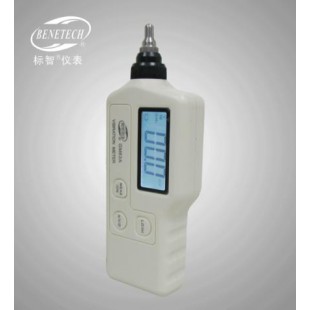

Vibration Meter GM63A
点击图片查看原图
商品: Vibration Meter GM63A
单价: 680.00
品牌: BENETECH
地区: 广东深圳市
人气: 已有 1320 人关注
更新: 2018-12-05
详细信息
技术参数
品牌标智仪表
类型笔型
 Vibration Meter GM63A
*Measuring range
Acceleration0.1~199.9m/s
Velocity0.1~1999.9m/s
Displacement0.001~1.999 mm (PP)
*Accuracy: ±5%H±2digits
*Measuring frequency
--Acceleration: 10Hz~1KHz (LO)1KHz~15KHz (HI)
--Velocity: 10Hz~1KHz (LO)
--Displacement: 10Hz~1KHz (LO)
*LCD display: 3 1/2 digits display
*Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)
*Data output: AC output 2 V peak (display full scale)
*Load impedance: 10K or more earphones can be connected
*Operation temperature: 0~40
*Equipped two probes (S and L) to adapt the different measurement requirement
*Low battery indication
*Auto power off
*LCD backlight display
Warranty: 12months

*Packing method: Gift box + PP box
*Power supply: 1*9V battery
*Weight: 134.5g
*Dimension: 175*67*33MM
